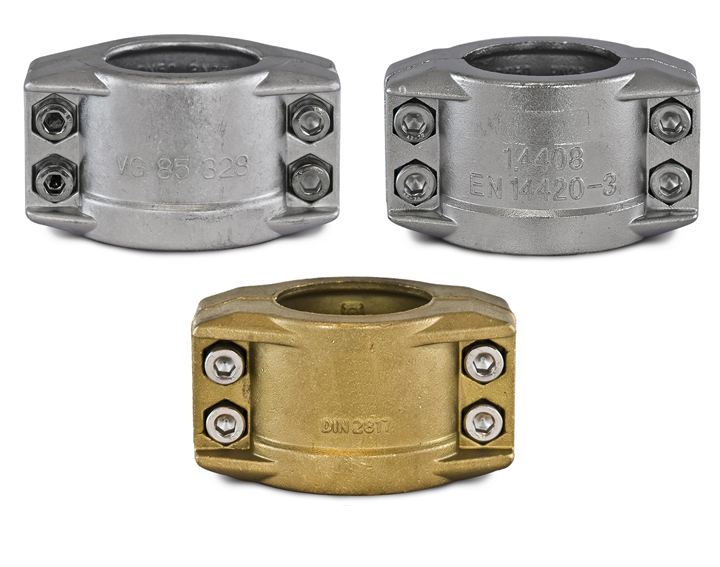

Safety clamps

Consists of 2 shells for mouting couplings with smooth shank and safety collar (EN14220-2).

Norm: EN14420-3 / DIN2817

Delivered with nuts and bolts

Available in aluminium, stainless steel (SS) or brass

ND For hose
(mm)
Ø out
(mm)
Ref Alu Ref SS Ref Brass
15 13 22 - 25 MSLA013 MSLS013 -
20 19 30 - 33 MSLA019 MSLS019 -
25 25 36 - 39 MSLA025 MSLS025 -
32 32 43 - 46 MSLA032 MSLS032 MSLB032
40 38 50 - 53 MSLA038 MSLS038 -
40 40 53 - 56 MSLA040 - MSLB040
50 50 63 - 67 MSLA050 MSLS050 MSLB050
50 50 69 - 71 MSLA50/10 - -
65 63 78 - 82 MSLA063 - MSLB063
75 75 88 - 93 MSLA075 MSLS075 MSLB075
75 75 94 - 97 MSLA075/10 - MSLB075/10
75 75 98 - 101 MSLA075/12 - MSLB075/12
80 80 94 - 97 MSLA080 - MSLB080
100 100 114 - 119 MSLA100 MSLS100 MSLB100
100 100 118 - 122 MSLA100/10 - MSLB100/10
100 100 122 - 126 MSLA100/12 - MSLB100/12
125 125 143 - 147 MSLA125 - -
150 150 167 - 173 MSLA150 - -
200 200 222 - 229 MSLA200 - -
200 200 230 - 239 MSLA200 - -
