Alfavin

PVC hose reinforced by an hard pvc spiral, with food grade quality, suitable for the transport of a multitube of media and food stuffs. Baccus is very easy to use even at low temperatures.

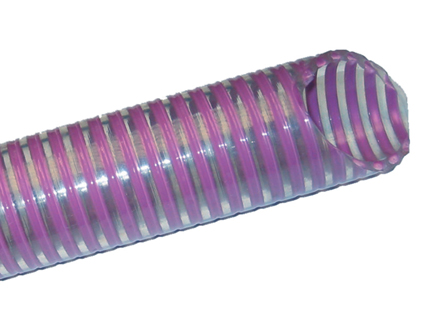

Construction: ransparent pvc with food grade quality with an embedded hard violet pvc spiral in the hose wall, smooth inside.

Certificat: IANESCO RE 11/15/15071 de 09/09/2011

Remarks: transport of food products following simulations A, B and C of the certificat, with the exception of alcoholic solutions > 15°

ATTENTION: forbidden for the use with fatty food stuffs (vegetal oils, milk, … )

Applications

liquids food stuffs with alcohol percentages up to 15%

Save as PDF

Temperature: -15°C to +60°C
Alfavin
Reference Diameter
(mm)
Wall thickness
(mm)
Weight
(g/m)
Bending radius
(mm)
Working Pressure
(bar)
Vacuum
(mH20)
Coil length
(m)
AVI040 40 4,3 720 260 8 10 25 - 50
AVI050 50 4,5 1050 340 7 10 25 - 50
AVI060 60 4,7 1300 380 6 10 25
AVI070 70 5,1 1650 420 5 10 25 - 50
AVI100 100 7 2700 600 3 9 25
AVI120 120 7,5 3400 720 3 8,5 25
